Binomial Option Pricing Model: Complete Excel Guide with MarketXLS

Binomial option pricing model is one of the most intuitive and widely taught methods for valuing options in finance. Unlike the Black-Scholes model, which provides a closed-form solution, the binomial model builds a discrete-time lattice (tree) of possible stock price paths, making it easier to visualize and more flexible for pricing American-style options that can be exercised early.

In this comprehensive guide, you will learn the theory behind the binomial option pricing model, how to build a complete pricing tree in Excel step by step, the Cox-Ross-Rubinstein (CRR) parameterization, how it compares to Black-Scholes, and how to use MarketXLS to pull real-time market data directly into your pricing model.

What Is the Binomial Option Pricing Model?

The binomial option pricing model was first proposed by Cox, Ross, and Rubinstein in 1979. It prices options by constructing a recombining tree of possible future stock prices. At each time step, the stock can either move up by a factor u or down by a factor d. By working backward from expiration to the present, you can determine the fair value of the option at each node.

Core Assumptions

The binomial model relies on several key assumptions:

1. Two possible outcomes per step: At each time interval, the stock price can only go up or down by predetermined factors.
2. No arbitrage: The model is built on the principle that no risk-free profit opportunities exist.
3. Risk-neutral valuation: Option prices are calculated as if investors are indifferent to risk, using risk-neutral probabilities.
4. Constant volatility and interest rate: Within the model, these parameters remain fixed across all time steps.
5. No transaction costs or taxes: The model assumes frictionless markets.

The Single-Period Binomial Model

To understand the binomial model, start with the simplest case: a single time period.

Suppose a stock is currently trading at price S₀. Over one period, it can either:

• Move up to S₀ × u (where u > 1)
• Move down to S₀ × d (where d < 1)

For a call option with strike price K:

• If the stock moves up: Cᵤ = max(S₀ × u − K, 0)
• If the stock moves down: Cᵈ = max(S₀ × d − K, 0)

The option price today is calculated using risk-neutral probability p:

C = e^(−rΔt) × [p × Cᵤ + (1 − p) × Cᵈ]

Where:

• r = risk-free interest rate
• Δt = length of the time step
• p = risk-neutral probability of an up move

The Cox-Ross-Rubinstein (CRR) Model

The CRR model is the most widely used parameterization of the binomial model. It defines the up and down factors based on the stock's volatility:

CRR Parameters

Where:

• σ = annualized volatility of the underlying
• r = risk-free interest rate
• T = time to expiration (years)
• n = number of time steps

Why CRR?

The CRR parameterization ensures that:

1. The tree recombines (an up move followed by a down move leads to the same price as a down move followed by an up move)
2. As the number of steps increases, the model converges to the Black-Scholes price
3. The probabilities p and (1−p) are always between 0 and 1

Building a Binomial Tree in Excel: Step by Step

Let us build a complete 3-step binomial option pricing tree in Excel. You can extend this to any number of steps.

Input Parameters

First, set up your input cells. Use MarketXLS to pull live data:

Calculate CRR Parameters

Note the inclusion of dividend yield in the probability formula, which adjusts for the dividend-paying stock.

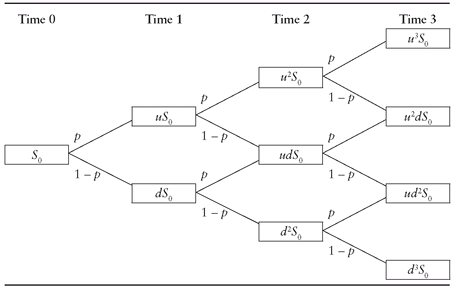

Step 1: Build the Stock Price Tree (Forward Pass)

For a 3-step tree, you need a grid. The stock price at node (i, j) where i is the time step and j is the number of up moves is:

S(i,j) = S₀ × u^j × d^(i−j)

Layout in Excel (rows = nodes from top, columns = time steps 0-3):

In Excel formulas:

• Cell E4 (t=0): =B1 (the current stock price)
• Cell F3 (t=1, up): =E4*$B$11
• Cell F5 (t=1, down): =E4*$B$12
• Continue for each node...

Step 2: Calculate Option Values at Expiration

At the final nodes (t=3), the option value is the intrinsic value:

• Call: =MAX(Stock Price − Strike, 0)
• Put: =MAX(Strike − Stock Price, 0)

For each terminal node:

=MAX(H4-$B$2, 0)   for a call option
=MAX($B$2-H4, 0)   for a put option

Step 3: Backward Induction (Calculating Option Value)

Working backward from expiration to the present, at each node:

European Option: C(i,j) = e^(−rΔt) × [p × C(i+1,j+1) + (1−p) × C(i+1,j)]

American Option: C(i,j) = max(Intrinsic Value, e^(−rΔt) × [p × C(i+1,j+1) + (1−p) × C(i+1,j)])

The American option formula checks at each node whether early exercise is more valuable than continuing to hold. This is the binomial model's key advantage over Black-Scholes—it naturally handles early exercise.

In Excel:

=MAX(intrinsic_value, EXP(-$B$4*$B$10)*($B$13*upper_node + (1-$B$13)*lower_node))

Step 4: Read the Result

The option value at the root node (t=0) is your model's price for the option.

Practical Example: Pricing an AAPL Call Option

Let us work through a concrete example. Suppose:

• S₀ = $228.50 (from =Last("AAPL"))
• K = $230
• T = 0.25 years (3 months)
• r = 4.5%
• σ = 28%
• n = 3 steps
• q = 0.44% dividend yield (from =DividendYield("AAPL"))

CRR Parameters:

• Δt = 0.25/3 = 0.0833
• u = e^(0.28 × √0.0833) = e^(0.0809) ≈ 1.0842
• d = 1/1.0842 ≈ 0.9224
• p = (e^((0.045−0.0044)×0.0833) − 0.9224) / (1.0842 − 0.9224) ≈ 0.5015

Stock Price Tree:

Option Values at Expiration (Call):

• $291.15 − $230 = $61.15
• $247.60 − $230 = $17.60
• $210.78 − $230 = $0 (OTM)
• $179.35 − $230 = $0 (OTM)

Backward Induction (working back to t=0):

The root node gives us the theoretical call option price.

Comparing Market Prices with Your Model

After building your binomial tree, compare the model's output with the actual market price of the option. Use MarketXLS to pull the real-time option chain:

=QM_GetOptionChain("AAPL")

Or get detailed quotes and Greeks for a specific contract:

=QM_GetOptionQuotesAndGreeks("AAPL")

This returns bid, ask, last price, implied volatility, and all Greeks (Delta, Gamma, Theta, Vega) for every available contract. Compare the market's implied volatility with the historical volatility you used in your model to understand any pricing discrepancies.

Model vs. Market Price Discrepancies

If your binomial model price differs significantly from the market price, consider:

1. Volatility input: Are you using historical or implied volatility? The market uses implied.
2. Number of steps: More steps → more accuracy. Try 50-100 steps for precision.
3. Dividend assumptions: Ensure you are using the correct dividend yield.
4. Interest rate: Use the current risk-free rate matching the option's expiration.

Binomial Model vs. Black-Scholes Model

Understanding when to use each model is crucial for options practitioners.

When to Use the Binomial Model

• Pricing American options (especially puts on dividend-paying stocks)
• When you need to model early exercise decisions
• For educational purposes to understand option pricing mechanics
• When dealing with discrete dividends
• For exotic options with path-dependent features

When to Use Black-Scholes

• Pricing European options quickly
• When you need Greeks calculated analytically
• For quick screening and comparison across many options
• When computational speed matters

MarketXLS provides the Black-Scholes calculation built in:

=BlackScholesOptionValue("AAPL")

You can also use the version with custom inputs:

=BlackScholesOptionValueWithUserInputs(...)

American vs. European Options in the Binomial Model

One of the binomial model's greatest strengths is its ability to price American options, which can be exercised at any time before expiration.

European Options

For European options, the backward induction formula simply discounts the expected value:

C = e^(−rΔt) × [p × Cᵤ + (1−p) × Cᵈ]

No early exercise check is needed because European options can only be exercised at expiration.

American Options

For American options, at each node you compare the continuation value (holding the option) with the intrinsic value (exercising now):

C = max(Intrinsic Value, e^(−rΔt) × [p × Cᵤ + (1−p) × Cᵈ])

If the intrinsic value exceeds the continuation value, it is optimal to exercise early at that node.

When Is Early Exercise Optimal?

• American calls on non-dividend stocks: Early exercise is never optimal (same price as European call)
• American calls on dividend-paying stocks: May be optimal to exercise just before ex-dividend date
• American puts: Early exercise can be optimal when the option is deep in the money and interest earned on the strike price exceeds remaining time value

This is precisely why the binomial model is the preferred method for pricing American puts on dividend-paying stocks—Black-Scholes cannot capture this early exercise premium.

Extending the Model: More Time Steps

The accuracy of the binomial model increases with the number of time steps. Here is how convergence works:

For practical trading purposes, 50-100 steps typically provide sufficient accuracy. In Excel, you can build dynamic trees using array formulas or VBA macros for higher step counts.

Using MarketXLS for Real-Time Model Inputs

The accuracy of any option pricing model depends on the quality of its inputs. MarketXLS provides real-time data feeds directly in Excel:

Stock Price

=Last("AAPL")

Returns the current market price of the underlying stock.

Dividend Yield

=DividendYield("AAPL")

Returns the current annual dividend yield, essential for accurate pricing of options on dividend-paying stocks.

Option Chain for Comparison

=QM_GetOptionChain("AAPL")

Pull the complete option chain to compare your model's theoretical price against actual market prices.

Option Greeks and Implied Volatility

=QM_GetOptionQuotesAndGreeks("AAPL")

This gives you the market's implied volatility for each contract, which you can use as the volatility input for your binomial model to match market pricing.

Advanced Topics

Trinomial Tree Model

An extension of the binomial model adds a third possible outcome at each step: the stock can move up, stay flat, or move down. This converges faster than the binomial model and better handles barrier options.

Implied Binomial Trees

Rather than using historical volatility to build the tree, implied binomial trees use market option prices to reverse-engineer the tree structure. This ensures the tree is consistent with observed market prices across all strikes.

Dividend Handling Methods

There are several approaches to handling dividends in binomial trees:

1. Continuous dividend yield: Adjust the risk-neutral probability (as shown in the CRR formula above)
2. Discrete dividends: At the ex-dividend date node, reduce the stock price by the dividend amount
3. Escrowed dividend model: Separate the stock price into a risky and riskless component

Comparison of Option Pricing Methods

Frequently Asked Questions

How many steps should I use in a binomial tree for accurate pricing?

For practical purposes, 50 to 100 steps provide a good balance between accuracy and computational simplicity in Excel. As the number of steps increases, the binomial model converges to the Black-Scholes price for European options. For educational purposes, 3-5 steps are sufficient to understand the mechanics.

Can the binomial model price exotic options?

Yes, the binomial model can be adapted to price certain exotic options, including American options, Bermudan options (exercisable on specific dates), and simple barrier options. For more complex path-dependent options, Monte Carlo simulation may be more appropriate.

What volatility should I use in the binomial model?

You can use either historical volatility (calculated from past stock returns) or implied volatility (derived from current market option prices). If you want your model to match market prices, use implied volatility. If you want an independent valuation, use historical volatility. MarketXLS provides both through its option chain and volatility functions.

How does the binomial model handle dividends?

The most common approach is to include the dividend yield in the risk-neutral probability calculation: p = (e^((r−q)Δt) − d) / (u − d), where q is the continuous dividend yield. For discrete dividends, you can adjust the stock price at the ex-dividend node. Use =DividendYield("AAPL") in MarketXLS to get the current yield.

Why does the binomial model sometimes give different prices than Black-Scholes?

For European options, the binomial model converges to Black-Scholes as the number of steps increases. Small differences with few steps are due to the discrete approximation. For American options, the binomial price should be higher than Black-Scholes because it accounts for the early exercise premium that Black-Scholes ignores.

Is the binomial model used in practice by professional traders?

Yes, variations of the binomial model are widely used, especially for pricing American options and employee stock options. However, practitioners often use more sophisticated versions with hundreds of steps, variable volatility, and discrete dividend handling. For quick European option pricing, Black-Scholes remains the industry standard.

Conclusion

The binomial option pricing model is an indispensable tool for anyone serious about understanding how options are valued. Its intuitive tree structure makes it accessible for learning, while its flexibility in handling American options, dividends, and early exercise makes it practical for real-world applications.

By combining the binomial model with MarketXLS in Excel, you can build a powerful option pricing workbook that uses live market data. Pull stock prices with =Last(), get dividend yields with =DividendYield(), compare model prices against real option chains with =QM_GetOptionChain(), and validate Greeks with =QM_GetOptionQuotesAndGreeks().

Ready to build your own binomial option pricing model in Excel? Explore MarketXLS pricing plans and start pulling live data into your models today.
